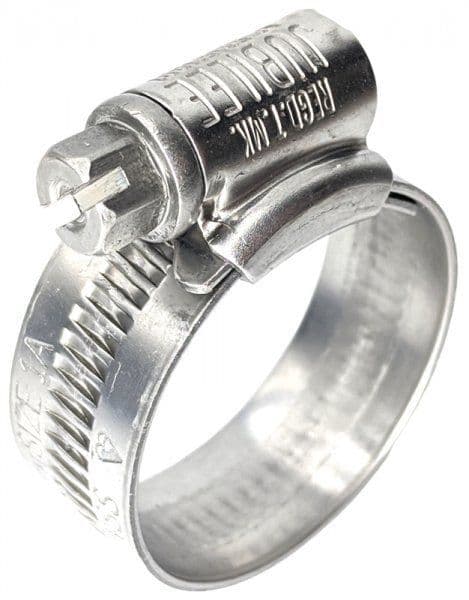

Jubilee Worm Drive Hose Clips - 304 St.Steel (W4)

£3.60 ex VAT
£4.32 inc VAT
Shipping calculated at checkout.
Size and connection

Pickup available at MCS | Midlands Cleaning Supplies

Usually ready in 24 hours
Delivery & returns

Delivery is calculated at checkout. Returns accepted on unused items in original packaging. Please contact us before returning any item.

Warranty information

Manufacturer warranty applies where available. Warranty does not cover incorrect installation, misuse, frost damage or lack of maintenance.

Description

Jubilee Worm Drive Hose Clips - 304 St.Steel (W4). Select the required size or connection below.

Size / connection Specification
9.5-12mm adjustment / 9.9mm band width 9.5-12mm adjustment; 9.9mm band width; 3.4Nm recommended torque - 4.5Nm max; 203psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
11-16mm adjustment / 9.9mm band width 11-16mm adjustment; 9.9mm band width; 3.4 Nm recommended torque - 4.5 Nm max; 203 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
13-20mm adjustment / 9.9mm band width 13-20mm adjustment; 9.9mm band width; 3.4 Nm recommended torque - 4.5 Nm max; 203 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
16-22mm adjustment / 13mm band width 16-22mm adjustment; 13mm band width; 4.2 Nm recommended torque - 5.6 Nm max; 203 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
18-25mm adjustment / 13mm band width 18-25mm adjustment; 13mm band width; 4.2 Nm recommended torque - 5.6 Nm max; 203 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
22-30mm adjustment / 13mm band width 22-30mm adjustment; 13mm band width; 5.1 Nm recommended torque - 6.8 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
25-35mm adjustment / 13mm band width 25-35mm adjustment; 13mm band width; 5.1 Nm recommended torque - 6.8 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
30-40mm adjustment / 13mm band width 30-40mm adjustment; 13mm band width; 5.1 Nm recommended torque - 6.8 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
32-45mm adjustment / 13mm band width 32-45mm adjustment; 13mm band width; 5.1 Nm recommended torque - 6.8 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
35-50mm adjustment / 13mm band width 35-50mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
40-55mm adjustment / 13mm band width 40-55mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
45-60mm adjustment / 13mm band width 45-60mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
55-70mm adjustment / 13mm band width 55-70mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 102 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
60-80mm adjustment / 13mm band width 60-80mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 44 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
70-90mm adjustment / 13mm band width 70-90mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 44 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
85-100mm adjustment / 13mm band width 85-100mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 44 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
90-120mm adjustment / 13mm band width 90-120mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 44 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
110-140mm adjustment / 13mm band width 110-140mm adjustment; 13mm band width; 6.7 Nm recommended torque - 9 Nm max; 44 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
120-150mm adjustment / 13mm band width 120-150mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
135-165mm adjustment / 13mm band width 135-165mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
158-190mm adjustment / 13mm band width 158-190mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
184-216mm adjustment / 13mm band width 184-216mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
210-242mm adjustment / 13mm band width 210-242mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
235-267mm adjustment / 13mm band width 235-267mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
260-292mm adjustment / 13mm band width 260-292mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
286-318mm adjustment / 13mm band width 286-318mm adjustment; 13mm band width; 5.9 Nm recommended torque - 7.9 Nm max; 18 psi max pressure; 304 stainless steel (W4); RoHS compliant; 1000 hours corrosion resistance (NSS test)
