Interpump WW909CVB Pressure Washer Pump - 13 LPM 100 Bar
Interpump WW909CVB Pressure Washer Pump - 13 LPM 100 Bar - Control Set / Hollow Shaft for Engine is backordered and will ship as soon as it is back in stock.
Description

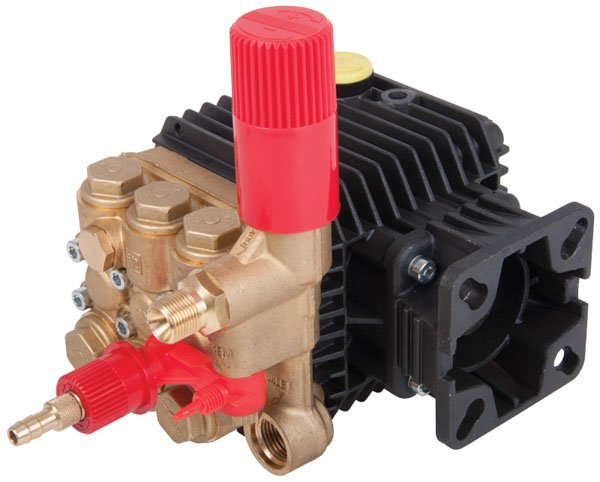

The Interpump WW909CVB is a professional 51 Series high-pressure plunger pump for commercial pressure washers, industrial cleaning systems and replacement applications.
It delivers 13 LPM at up to 100 Bar and operates at 3400 RPM.
Key specifications
- Flow rate: 13 LPM
- Maximum pressure: 100 Bar
- Operating speed: 3400 RPM
- Power requirement: 3.5 HP / 2.57 kW
- Shaft: 3/4" hollow shaft
- Manifold: Brass manifold with integrated valve
- Flange: C flange for SAE J609 A extension 3 engines
- Inlet: 1/2" BSP female
- Outlet: 3/8" BSP male
- Supplied as a control set with integrated trapped-pressure unloader valve and chemical injector
Configuration guidance
Bare pump with the normal shaft configuration is the standard option. Select a control set, left-hand, twin-shaft, motor hollow-shaft, engine hollow-shaft or hydraulic hollow-shaft version only where the drive arrangement specifically requires it. Check rotation, shaft size, flange and drive compatibility before ordering.
