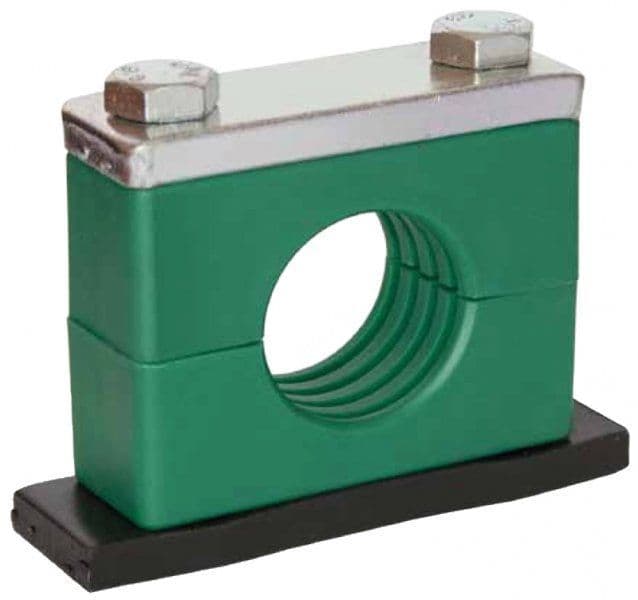

Heavy Duty Tube Clamps

£7.24 ex VAT
£8.69 inc VAT
Shipping calculated at checkout.
Size and connection

Pickup available at MCS | Midlands Cleaning Supplies

Usually ready in 24 hours
Delivery & returns

Delivery is calculated at checkout. Returns accepted on unused items in original packaging. Please contact us before returning any item.

Warranty information

Manufacturer warranty applies where available. Warranty does not cover incorrect installation, misuse, frost damage or lack of maintenance.

Description

Heavy Duty Tube Clamps. Select the required size or connection below.

Size / connection Specification
10mm o.d. / G1/8" pipe nominal bore / Polypropylene clamp body 10mm o.d.; G1/8" pipe nominal bore; Din group 1; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x45 zinc plated steel bolts; Manufactured to DIN 3015
12mm o.d. / Polypropylene clamp body 12mm o.d.; Din group 1; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x45 zinc plated steel bolts; Manufactured to DIN 3015
15mm o.d. / Polypropylene clamp body 15mm o.d.; Din group 1; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x45 zinc plated steel bolts; Manufactured to DIN 3015
17.2mm o.d. / G3/8" pipe nominal bore / Polypropylene clamp body 17.2mm o.d.; G3/8" pipe nominal bore; Din group 1; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x45 zinc plated steel bolts; Manufactured to DIN 3015
19mm o.d. (3/4") / Polypropylene clamp body 19mm o.d. (3/4"); Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
20mm o.d. / Polypropylene clamp body 20mm o.d.; Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
22mm o.d. (7/8") / Polypropylene clamp body 22mm o.d. (7/8"); Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
25mm o.d. (1") / Polypropylene clamp body 25mm o.d. (1"); Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
28mm o.d. / Polypropylene clamp body 28mm o.d.; Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
30mm o.d. / Polypropylene clamp body 30mm o.d.; Din group 2; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x60 zinc plated steel bolts; Manufactured to DIN 3015
32mm o.d. (1 1/4") / G1" pipe nominal bore / Polypropylene clamp body 32mm o.d. (1 1/4"); G1" pipe nominal bore; Din group 3; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x70 zinc plated steel bolts; Manufactured to DIN 3015
35mm o.d. / Polypropylene clamp body 35mm o.d.; Din group 3; Polypropylene clamp body; Zinc plated steel top plate; Steel weld plate; M10x70 zinc plated steel bolts; Manufactured to DIN 3015
