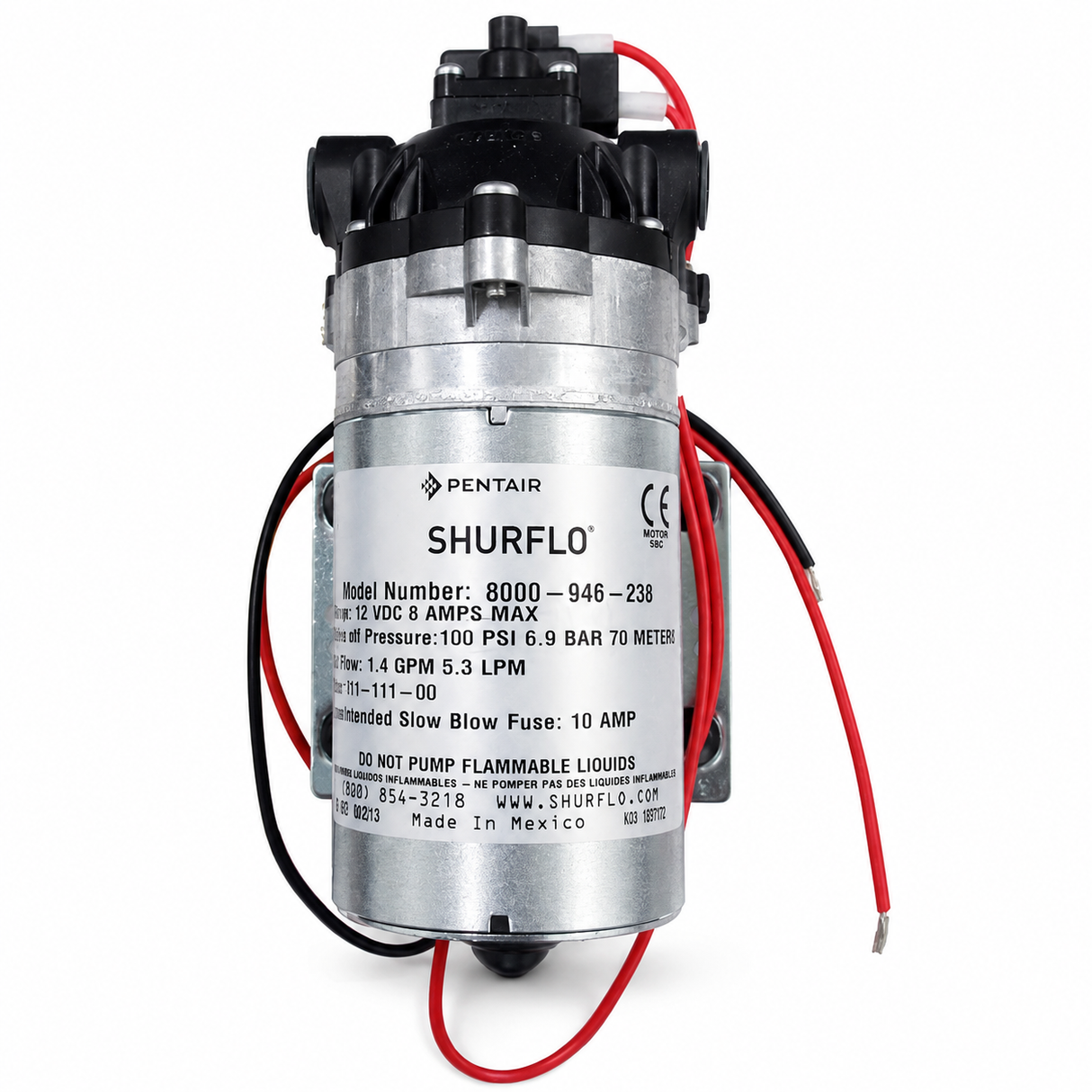

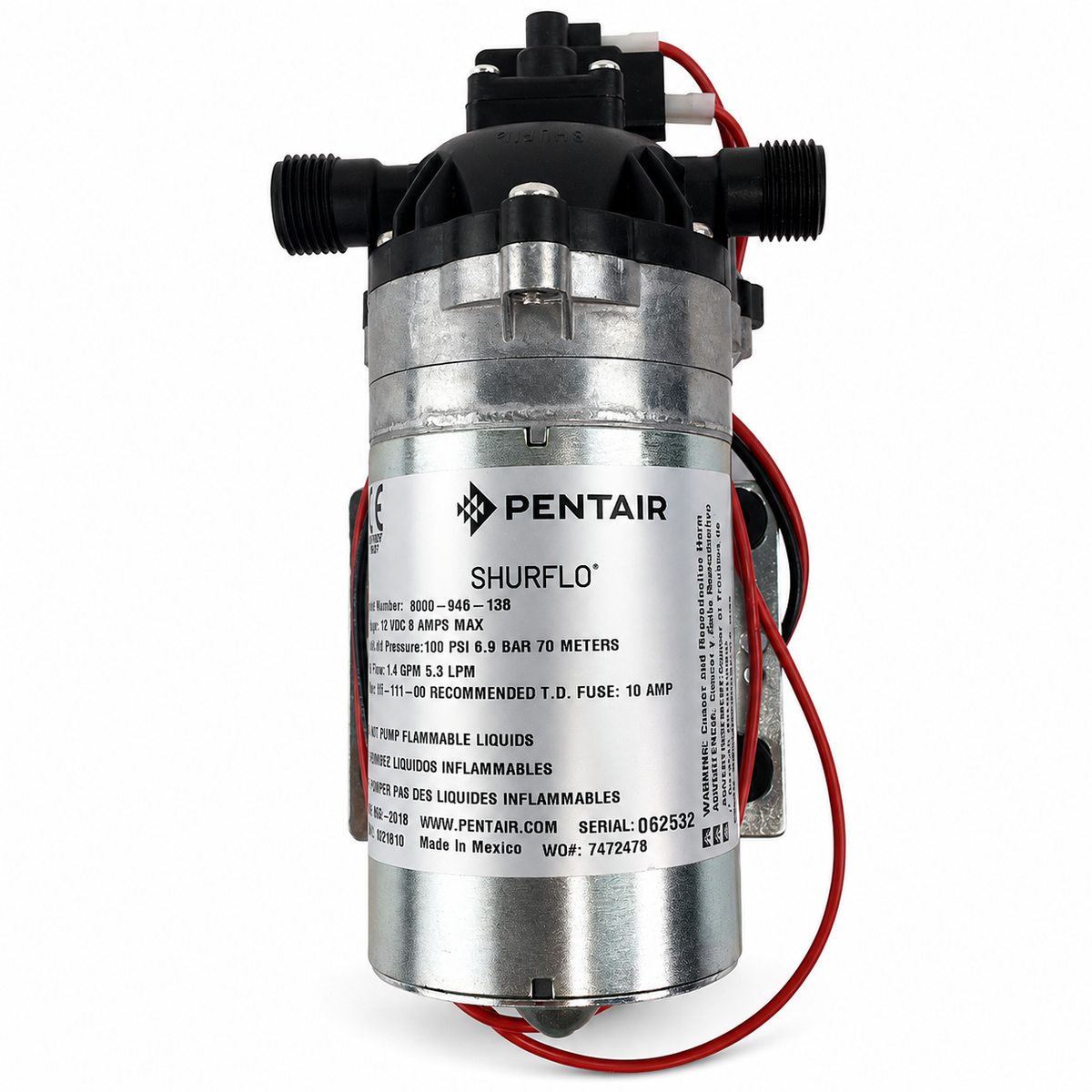

Shurflo 100 PSI 12V Window Cleaning Pump – 5.3 LPM
Shurflo 100 PSI 12V Window Cleaning Pump – 5.3 LPM - 1/2 Male Bsp is backordered and will ship as soon as it is back in stock.
Description
The SHURflo 8000 Series 12V diaphragm pump is a dependable choice for professional water-fed pole window-cleaning systems.
Delivering up to 5.3 litres per minute at a maximum pressure of 100 PSI, it provides the water flow and pressure required for vehicle-mounted pure-water systems and high-reach window cleaning.
The automatic demand pressure switch stops the pump when the water outlet is closed and restarts it when flow is required. For adjustable water flow and improved system control, installation with a compatible digital pump controller is recommended.
Two port configurations are available. Select the version that matches your existing hose fittings and system layout.
AVAILABLE OPTIONS
½″ Male Ports – Model 8000-946-138
- Two ½″ male threaded ports
- Compatible with suitable SHURflo female hose-tail fittings
- Commonly used on modern water-fed pole systems
⅜″ Female Ports – Model 8000-946-238
- Two ⅜″ NPT female threaded ports
- Accepts suitable male adaptors and hose-tail fittings
- Ideal for replacing an existing female-port pump
KEY FEATURES
- Genuine Pentair SHURflo pump
- Professional 12V diaphragm pump
- Maximum pressure: 100 PSI
- Open flow rate: up to 5.3 LPM
- Automatic demand pressure switch
- Self-priming design
- Strong dry-running resistance
- Can be installed in multiple mounting positions
- Suitable for pure-water window-cleaning systems
- Serviceable pump design
SPECIFICATIONS
- Manufacturer: Pentair SHURflo
- Series: 8000 Series
- Voltage: 12V DC
- Maximum current: 8 amps
- Recommended fuse: 10-amp slow-blow fuse
- Maximum pressure: 100 PSI / 6.9 bar
- Open flow rate: 5.3 LPM / 1.4 GPM
- Maximum stated head: 70 metres
- Pump type: Automatic-demand diaphragm pump
- Fluid suitability: Water and compatible non-flammable liquids
MODEL NUMBERS
- Male-port version: 8000-946-138
- Female-port version: 8000-946-238
SUITABLE APPLICATIONS
- Water-fed pole window cleaning
- Pure-water delivery systems
- Window-cleaning vans
- Mobile water tanks
- Hose-reel systems
- Low-pressure water transfer
- Professional cleaning equipment
INSTALLATION INFORMATION
Install the pump using an appropriate 12V power supply, correctly rated wiring and a 10-amp slow-blow fuse. A compatible digital pump controller is recommended to regulate flow and reduce unnecessary cycling.
Do not use this pump for petrol, diesel, solvents or other flammable liquids.
Check the required port type before ordering. Fittings, controller, battery, hose and wiring accessories are not included unless selected or stated separately.
PACKAGE CONTENTS
- One genuine SHURflo 12V pump in the selected port configuration
